抗电磁干扰电容器X1跨接抑制突波安规电容器XY安规电容

产品编号：5042455 更新时间：2020/8/20 3:48:47

价格：

定量：

东莞市科尼盛电子有限公司

业务热线： ( )

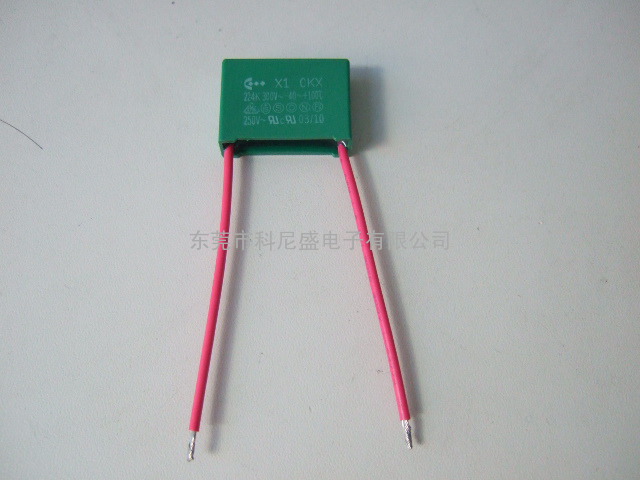

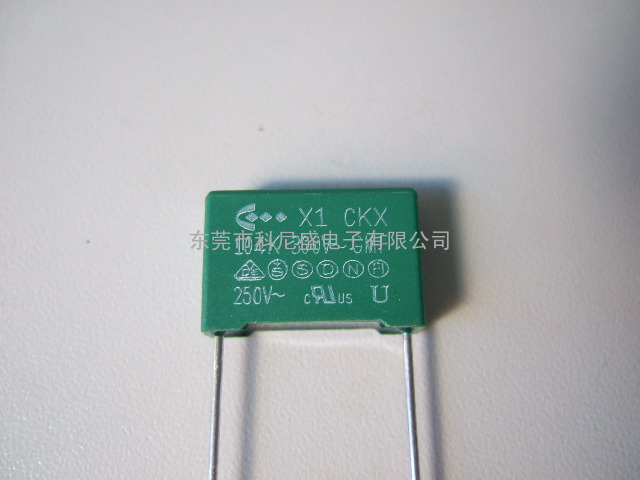

X1金属化聚丙烯薄膜电容器

METALLIZED POLYPROPYLENE FILM CAPACITORS

----降燥抑制干扰电容，有九国认证

■特点：FEATURES

◆抑制干扰，有九个国家的安全标准规格合格认证

Provides interference suppression ,all safety approval.

◆能承受过压冲击Overvoltage stress withstanding

◆具有优越的自愈性Self-healing properties

◆积极和消极的阻燃防火功能Active and passive flame retardant.

■用途APPLICATIONS

◆线间旁路,天线耦合,线间跨接和电花消制回路，有效电磁滤波.

Ldeal for use in line bypass, antenna coupling ,a cross-the-line and spark killer circuits.

◆开关电源等各种电路中抑制开关瞬间的涌浪大电流

Available for EML filer. Switching power supply applications.

◆事务机..Ex.打字机、计算器、电脑显示器和监视器、家用电器用品..Ex.搅拌器、电风扇、咖啡研磨机、音响和电视电路中

Business machines appliances ,such as: typewriters, adding machines, computer displays

and monitors .Household appliances, such as: mixers, fans ,coffee grinders, audio and TV circuits.

◆闸流体和控制品装置..Ex.调光器

Thyristor and triac appliances, such as: dimmers

■技术要求SPECIFICATIONS

介质Dielectric	聚丙烯膜Polypropylene film
电极Electrodes	真空蒸金属Vacuum evaporated metal
包封 Coating	阻燃防火塑胶壳并以环氧树脂灌封Encapsulated in flame retardant (UL-94V-0) plastic case and epoxy resin end seal.
道线Leads	径向镀锡道线Radial leads of tinned wire.
气候类别Climatic Category	40/100/21
静电容量Capacitance 额定电压versus Rated Voltage(Ur)	0.0047UF-10UF 250V/,(50/60Hz)
静电容量误差Capacitance Tolerance	J=±5%, K=±10%, M=±20%,
散逸因素（损耗角正切） Dissipation Factor(Tangent of Loss)	≤0.1% at 1KHz and 20℃， ≤0.3% at 10KHz and 20℃
耐电压Voltage Proof	T-T 60Hz or 2200V.DC 1sec T-C 60Hz 60 1min
绝缘电阻lnsulation Resistance	C≤0.33UF IR≥30000MΩ. C＞0.33UF IR≥10000 MΩ/UF

CT （品牌）

■ 外形图OUTLINE DRAWING

■ 尺寸 DIMENSIONS
